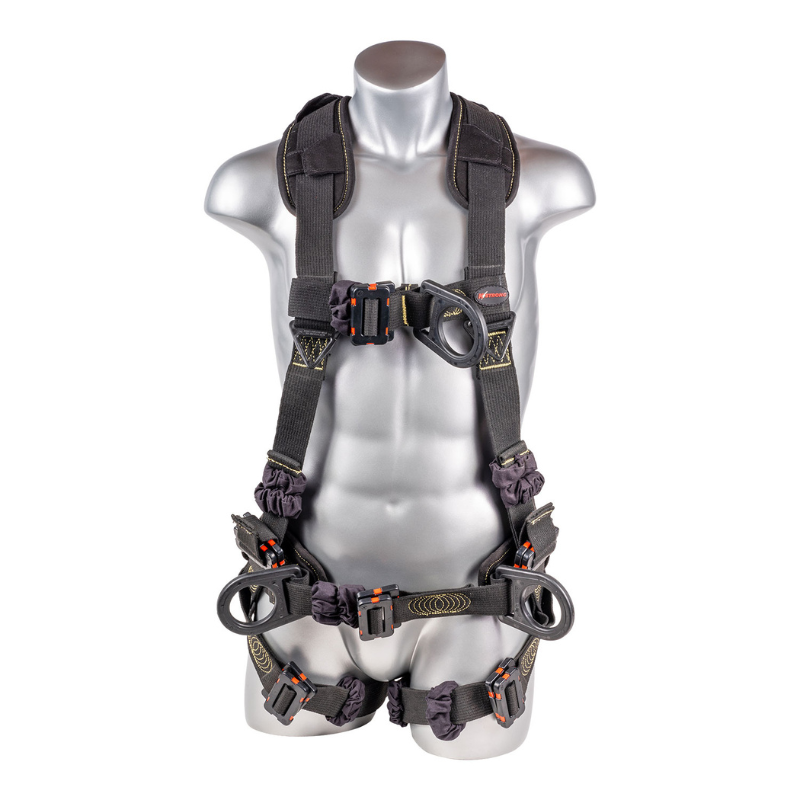

Element Arc Flash Rated 5-Point Full Body Harness, Dorsal D-ring, Front D-Ring, 2 Side D-rings, Waist Pad w/ Removable Tool Belt, Removable Back/Shoulder Pad, Mating Buckle Legs and Chest (ANSI)
Element Arc Flash Rated 5-Point Full Body Harness, Dorsal D-ring, Front D-Ring, 2 Side D-rings, Waist Pad w/ Removable Tool Belt, Removable Back/Shoulder Pad, Mating Buckle Legs and Chest (ANSI)
KStrong Kapture Full Body Harness
Product Code: UFH10732P
The 5-Point Full Body Harness (FBH) is designed for dielectric arc flash protection, ensuring maximum safety and comfort. It features a removable back/shoulder pad and waist belt for lumbar support. The harness includes a dorsal D-ring, a front D-ring, and two side D-rings for work positioning. The shoulder straps have dielectric friction buckles for easy adjustment, and the chest and leg straps feature dielectric pass-thru buckles for secure fitting. Made from flame-resistant (FR) aramid webbing with Kevlar stitching, this harness is built to withstand extreme conditions. The metal components have an alloy steel core with a reinforced polymer finish. This harness meets or exceeds ANSI Z359.11-2021 and ASTM F887-20 standards.
Feature |
Description |
Design | 5-point adjustable full body harness made with FR webbing |
Shoulder Straps | Dielectric friction buckles for easy adjustment |
Chest & Leg Straps | Dielectric pass-thru buckles for easy adjustment |
Dorsal D-ring | One dorsal dielectric D-ring for fall arrest |
Front D-ring | One sternal dielectric D-ring for fall arrest |
Side D-rings | Two dielectric D-rings at the waist level for positioning |
Waist Belt | Provides lumbar support |
Removable Back/Shoulder Pad | Enhances comfort |
Webbing Material | Aramid |
Webbing Width | 1.73 in. ± 0.04 in. (44mm ± 1mm) |
Breaking Strength | 5000 lbs. |
Stitching Thread Material | Kevlar |
Metal Component Material | Alloy steel core with reinforced polymer |
Metal Finish | Black molded |
Relevant Standards | Meets or exceeds ANSI Z359.11-2021, ASTM F887-20 |
