KStrong Kapture Full Body Harness
Product Code: UFK20410

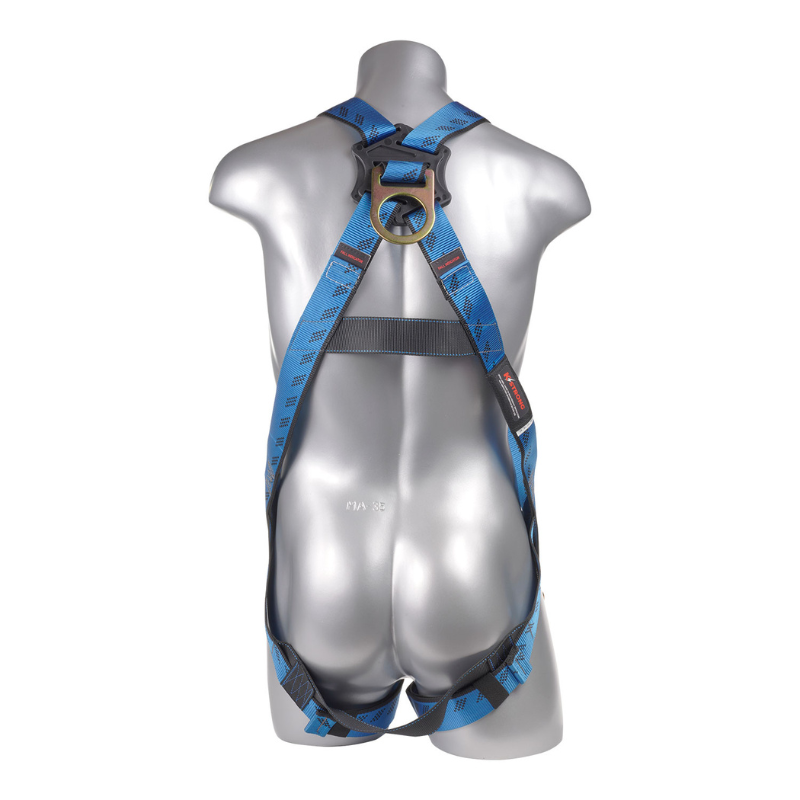

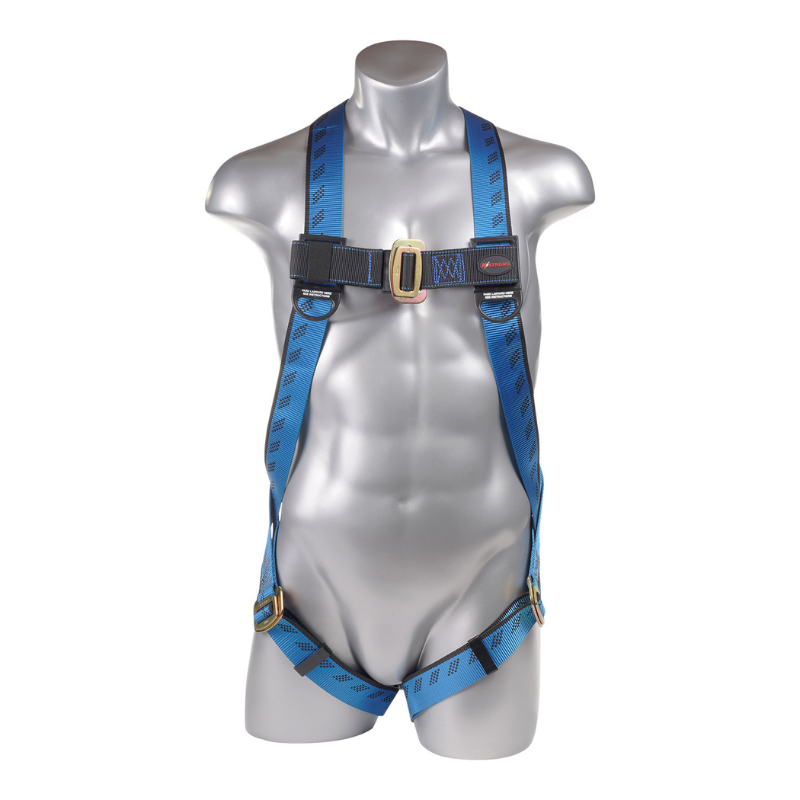

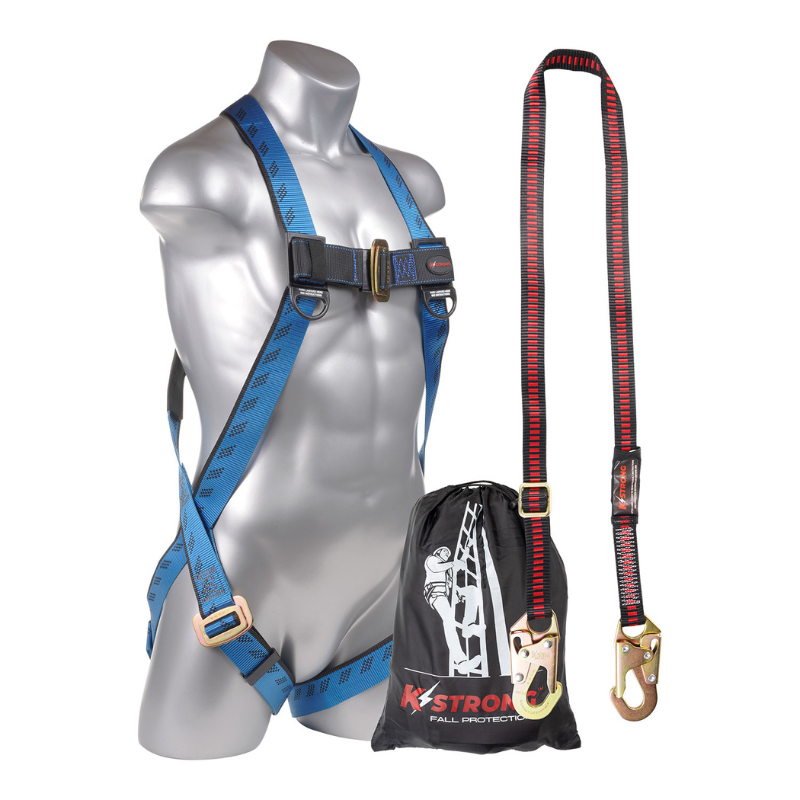

The KStrong® Kapture™ Essential 3-Point Full Body Harness with Dorsal D-Ring and Mating Buckle Leg Closures, paired with the KStrong® 6 ft. Adjustable Work Positioning Lanyard with Snap Hooks, offers comprehensive fall protection and work positioning capabilities. This combination ensures safety and compliance with ANSI standards, making it ideal for various industrial applications.
Harness Specifications
Feature |
Description |
| Design | 3-Point Adjust Lightweight Full Body Harness with One (1) Dorsal D-Ring and Mating Buckle Leg Closures |
| Dorsal D-Ring | One dorsal attachment D-ring for fall arrest |
| Adjustability | Adjustable leg straps |
| Webbing Material | Polyester |
| Webbing Width | 1.73 in. ± 0.04 in. (44mm ± 1mm) |
| Breaking Strength | 5000 lbs. |
| Stitching Thread Material | High-tenacity polyester |
| Metal Component Material | Alloy steel |
| Metal Finish | Silver or Golden Yellow Galvanized |
| Capacity Range | ANSI – 130 – 310 lbs.; OSHA – 420 lbs. |
| Relevant Standards | Meets or exceeds ANSI Z359.11-2014 |
| Model | Size | Weight |
| UFK20410 | S - L | 2.50 lbs. ± 0.02 lbs. (1134 gm ± 10 gm) |
| L - XL | 2.60 lbs. ± 0.02 lbs. (1179 gm ± 10 gm) |

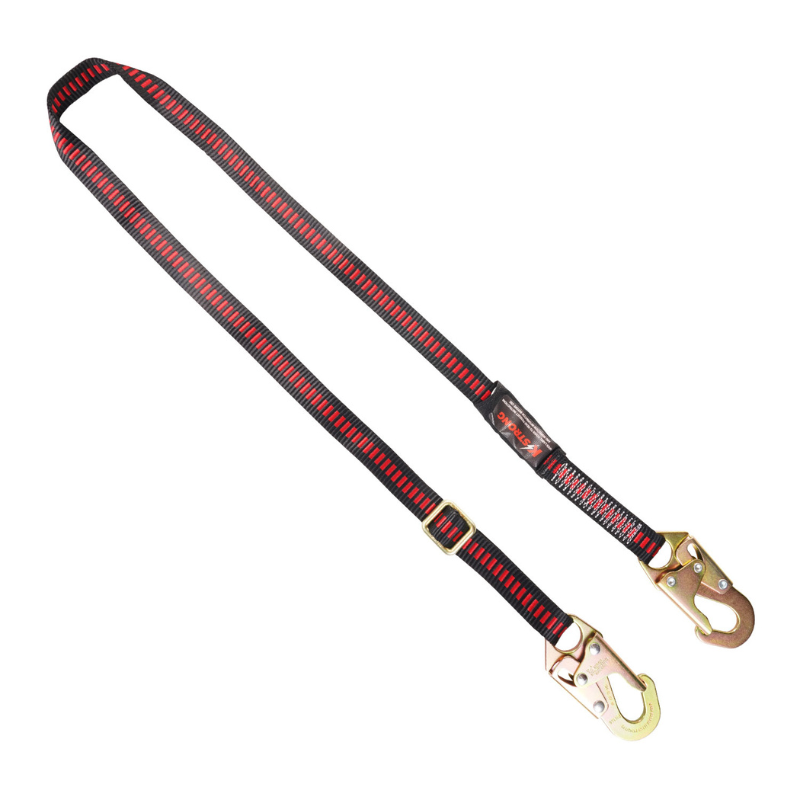

Lanyard Specifications
| Feature | Description |
|---|---|
| Design | 6 ft. Adjustable (from 4.5 ft. to 6 ft.) Work Positioning Lanyard with snap hooks |
| Webbing Material | 1.57 in. (40mm) wide polyester tubular webbing incorporated with 1.18 in. (30mm) webbing |
| Adjuster Ring | Provides adjustment from 4 – 6 ft. |
| End Attachments | Both ends of lanyard are equipped with Forged Snap Hook (PN 145) |
| Webbing Width | 1.57 in. ± 0.04 in. (40mm ± 1mm) |
| Tensile Strength | 7000 lbs. (3175kg) |
| Stitching Thread Material | High-tenacity polyester |
| Metal Component Material | Alloy steel |
| Metal Plating | Zinc plated |
| Metal Finish | Shot blasted |
| Breaking Strength | 23 kN (5000 lbs.) (2268kg) |
| Weight | 2.29 lbs. ± 0.02 lbs. (1040 gm. ± 10 gm) |
| Relevant Standards | Meets or exceeds ANSI Z359.3-2017 |
This combination of the KStrong® Kapture™ Essential 3-Point Full Body Harness and the Adjustable Work Positioning Lanyard offers robust fall protection and adjustability for enhanced safety in demanding work environments.
