Parapet Anchor Clamp with Extended Movable Arm
Parapet Anchor Clamp with Extended Movable Arm

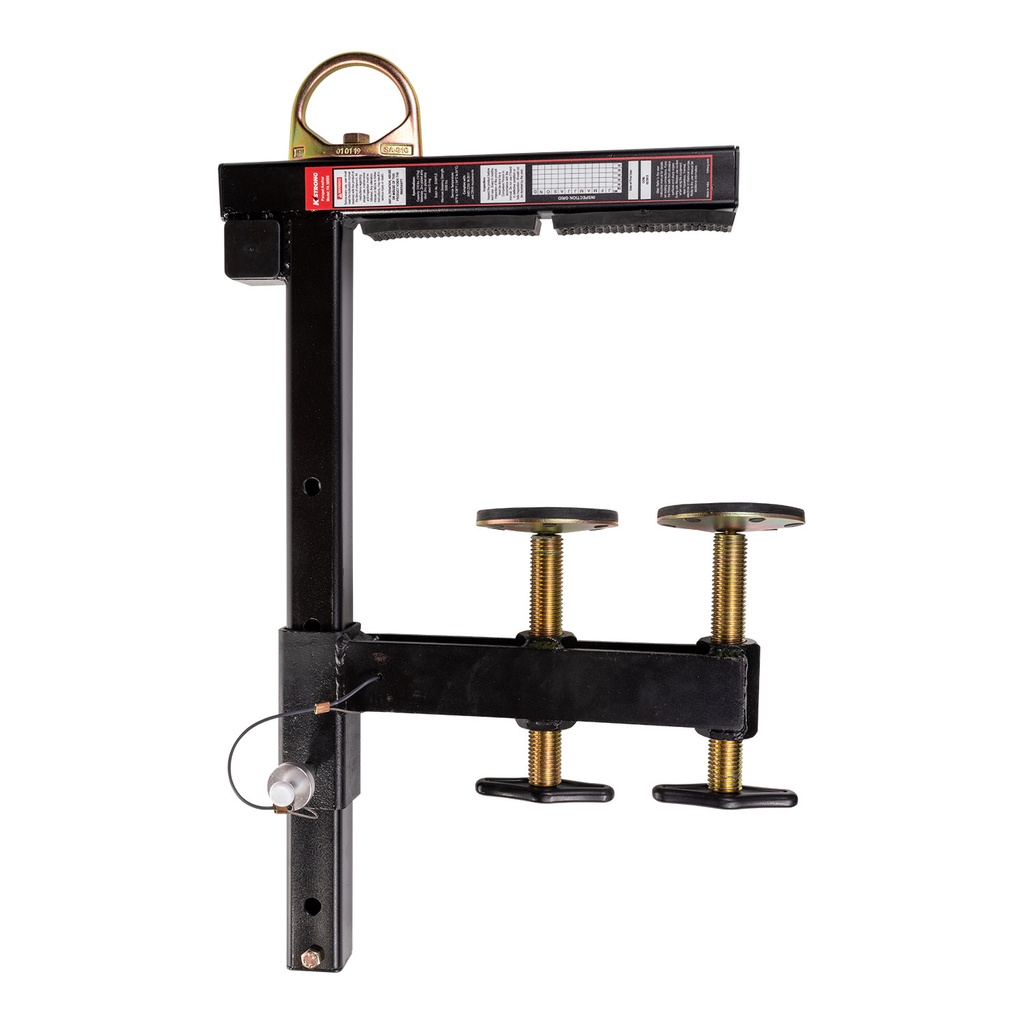

KStrong® Parapet Clamp Anchor – Adjustable Arm (ANSI)
Product Code: UFA30070
The KStrong® Parapet Anchor is designed with an extended movable arm, allowing installation on parapets with moulding on the outer edge. This anchor is ideal for installation on the parapet of a building, providing an anchor point at the top of the outside facade. It is adaptable to varying parapet thicknesses with an adjustable width feature. The anchor is securely tightened onto the parapet using rubber disks, ensuring stability and safety during use.
Feature | Specification |
|---|---|
| Product Name | KStrong® Parapet Anchor |
| Design | - Extended movable arm for installation on parapets with moulding<br> - Suitable for installation on building parapets with anchor point on the outside facade<br> - Adjustable width to fit varying parapet thicknesses<br> - Tightened onto parapet using rubber disks |
| Installation | - Minimum parapet width: 2.36” (60mm)<br> - Maximum parapet width: 14.17” (360mm) |
| Material | High strength alloy steel |
| Finish | Silver or Golden Yellow Galvanized |
| System Strength | Greater than 25 kN |
| Weight | 21.08 lbs. ± 0.22 lbs. (9560gm ± 100gm) |
| Relevant Standards | Meets or Exceeds ANSI Z359.18-2017 |
