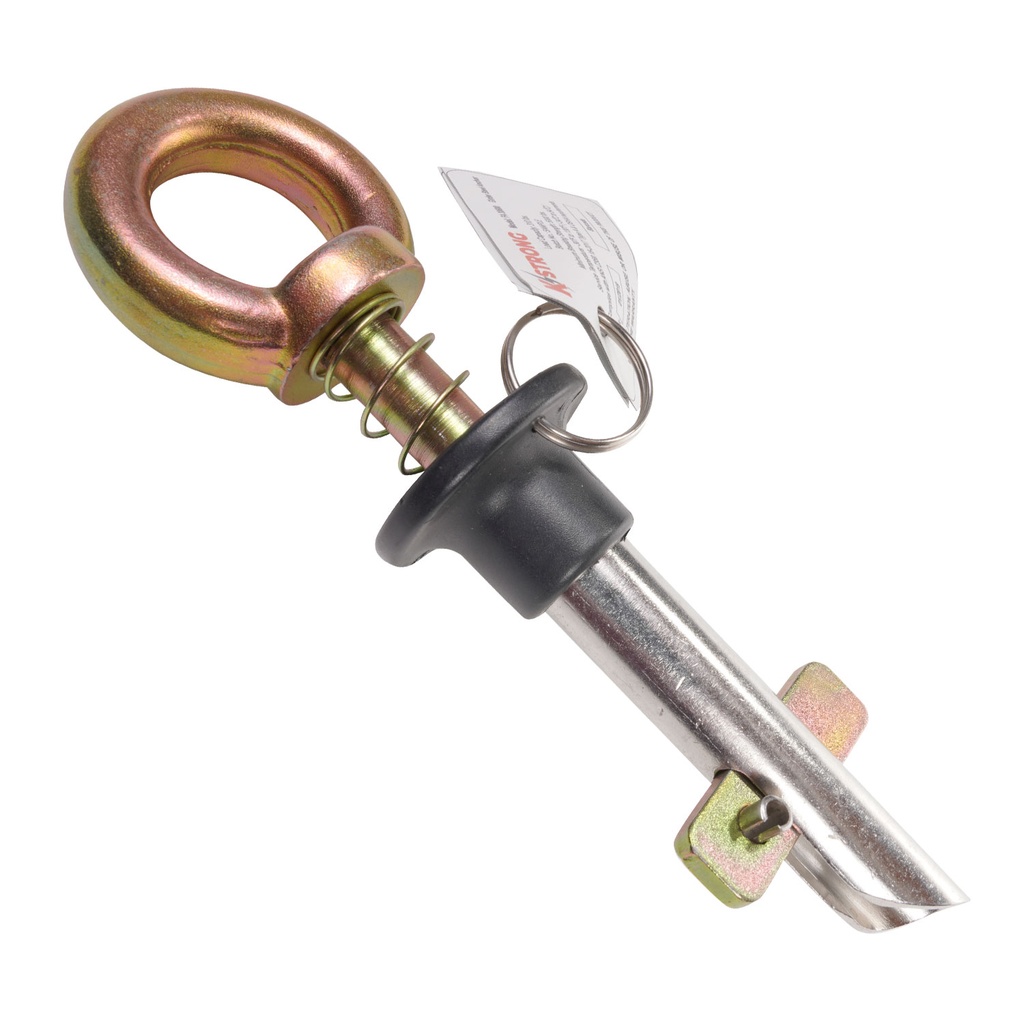

KStrong® Removable Steel Girder Anchor (ANSI)
Product Code: UFA30080
The KStrong® Removable Steel Girder Anchor is a versatile and reusable anchorage point designed for mounting on solid steel structures, girders, and steel I-beams. This anchor can be easily installed with one hand and is suitable for use as a fall protection anchorage point. It can be mounted on structures with a maximum thickness of 1.57 inches (40mm) and is constructed from durable alloy steel and stainless steel molded with polymer. The recommended bolt hole size for installation ranges from 0.80 inches (21mm) to 1.18 inches (30mm). This anchor meets or exceeds ANSI Z359.18-2017 Type A standards.
Feature |
Specification |
Design | Removable/reusable anchor for solid steel structures, girders, and I-beams. Easy one-hand installation. Maximum thickness of 1.57” (40mm). |
Usage | Anchorage point for fall protection equipment. |
Material | Eye nut & Main body: Alloy steel. Outer Body: Stainless steel molded with polymer. |
Recommended Bolt Hole Size | 0.80” (21mm) to 1.18” (30mm). |
Static Strength | Greater than 5000 lbs (2268 kg). |
Weight | 1.21 lb ± 0.02 lb (550 gm ± 10 gm). |
Relevant Standards | Meets or Exceeds ANSI Z359.18-2017 Type A. |
