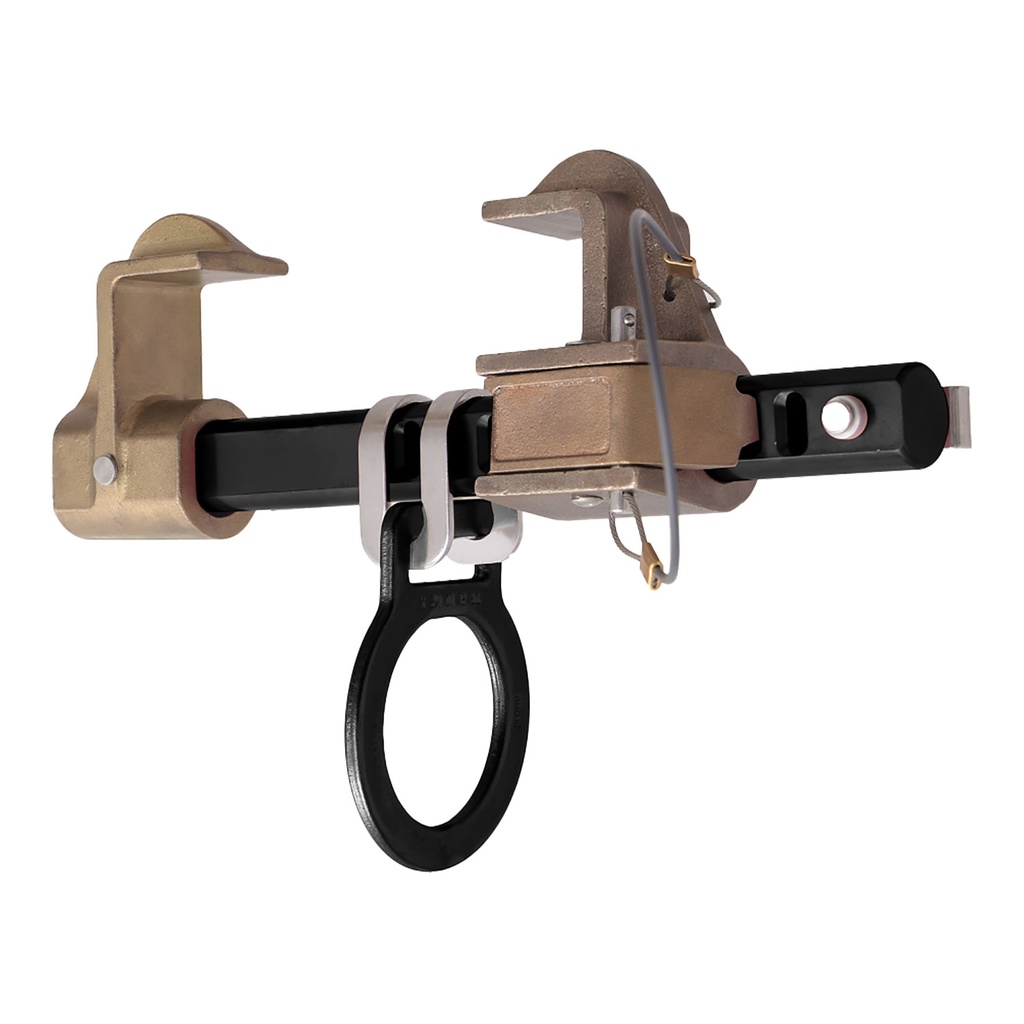

    Kstrong® Aluminum Sliding Beam Anchor, Adjustable 3” – 6”. (ANSI)


    Product Code: UFA30115

    The KStrong® Rolling Beam Anchor Trolley is an adjustable anchor designed to fit I-beams with flange widths ranging from 3” to 6”. It is capable of being installed on the flange of beams, with the adjustable jaw allowing for variable positions to accommodate different flange widths. Made from aluminum alloy and brass, this anchor ensures durability and strength, meeting the necessary safety standards.


    Feature

    Specification

    Design Anchor capable of being installed on flange of beams; adjustable jaw for varying flange widths.
    Minimum Flange Width 2.92″ (74mm)
    Maximum Flange Width 5.90″ (150mm)
    Material Aluminum Alloy & Brass
    System Strength Greater than 5000 lbs (2268 kg)
    Weight 3.56 lbs. ± 0.22 lbs. (1615 gm. ± 100 gm)
    Relevant Standards Meets or Exceeds ANSI Z359.18-2017 Type A
