KStrong® Aluminum and Steel Rolling Beam Anchor, Adjustable 3.14” – 9.84” (ANSI)
Product Code: UFA30130

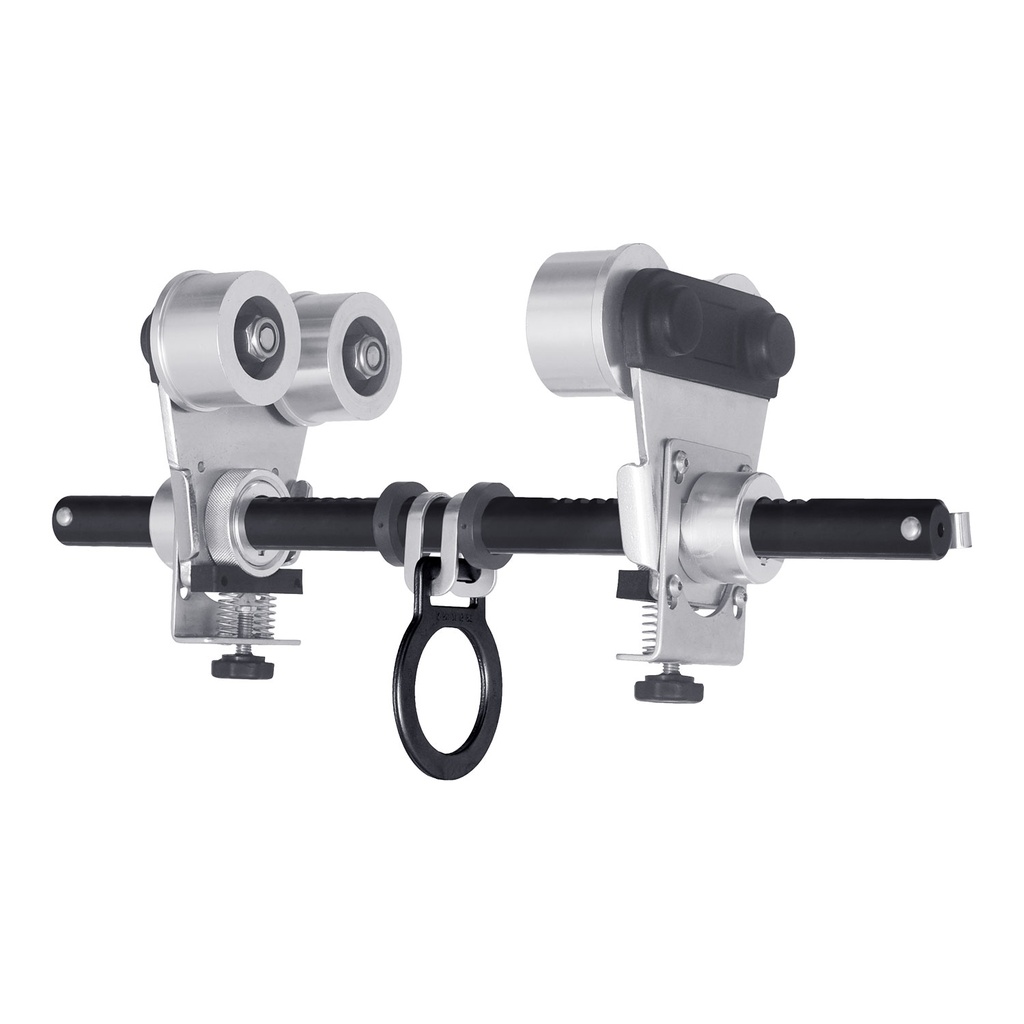

The KStrong® Aluminum and Steel Rolling Beam Anchor is an adjustable anchor designed to fit I-beams with flange widths ranging from 3.14” to 9.84”. This anchor can be installed on the flange of beams, with the adjustable jaw allowing for variable positions to accommodate different flange widths. It glides smoothly along the beam, providing horizontal mobility. The anchor is constructed from aluminum alloy and stainless steel, ensuring durability and strength.
Feature |
Specification |
| Design | Anchor capable of being installed on flange of beams; adjustable jaw for varying flange widths; glides smoothly along the beam for horizontal mobility. |
| Material | Aluminum Alloy & Stainless Steel |
| Flange Width Range | 3.14” – 9.84” |
| Minimum Breaking Strength | Greater than 23 kN (5000 lbs.) |
| Weight | 8.94 lbs. ± 0.22 lbs. (4055 gm ± 100 gm) |
| Relevant Standards | Meets or Exceeds ANSI Z359.18-2017 Type A |
