I-beam Stanchion Anchor (ANSI)

485.49 485.49 USD 485.49

485.49

Not Available For Sale

    This combination does not exist.

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

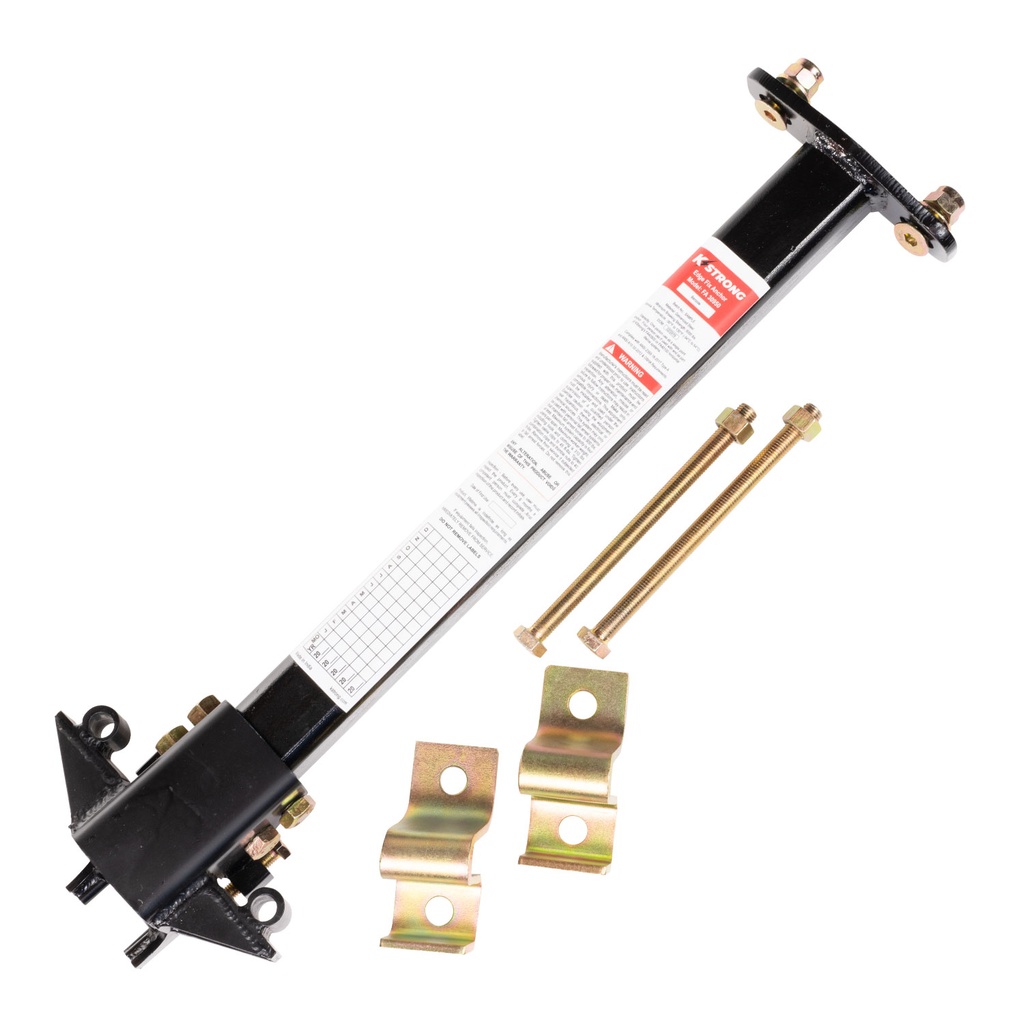

    KStrong® I-beam Stanchion Anchor (ANSI)


    Product Code: UFA30420

    The KStrong® Portable Anchor Post is an extremely easy-to-install solution for setting up a Horizontal Line on steel construction I-Beam sections. Designed specifically for metal I-Beams, this anchor post can be used as a stand-alone anchor or to create a horizontal lifeline along the length of the I-Beam. Its unique tilted design allows for unobstructed movement during the construction of roofs or metal structures. The post is compatible with I-Beams having a flange width of 5.9” (150mm) to 8.66” (220mm), and span lengths can be adjusted with the help of intermediates. Made from high strength alloy steel and finished with an ED coated black surface, this anchor post ensures durability and reliability.


    Feature

    Specification

    Product NameKStrong® Portable Anchor Post
    Design- Designed for installation on metal I-Beam<br> - Can be used as a stand-alone anchor post or to form a horizontal lifeline<br> - Unique tilted design for unobstructed movement<br> - Compatible with I-Beam flange width of 5.9” (150mm) to 8.66” (220mm)
    MaterialHigh strength alloy steel
    FinishED coated black
    Minimum Breaking Strength15kN
    Weight28.22 lbs. ± 0.22 lbs. (13 kg ± 1 kg)
    Relevant StandardMeets or Exceeds ANSI Z359.18-2017 Type A
