KStrong® Vertical Post for Containers with Swivel Anchor (ANSI)
Product Code: UFA30430(SW)

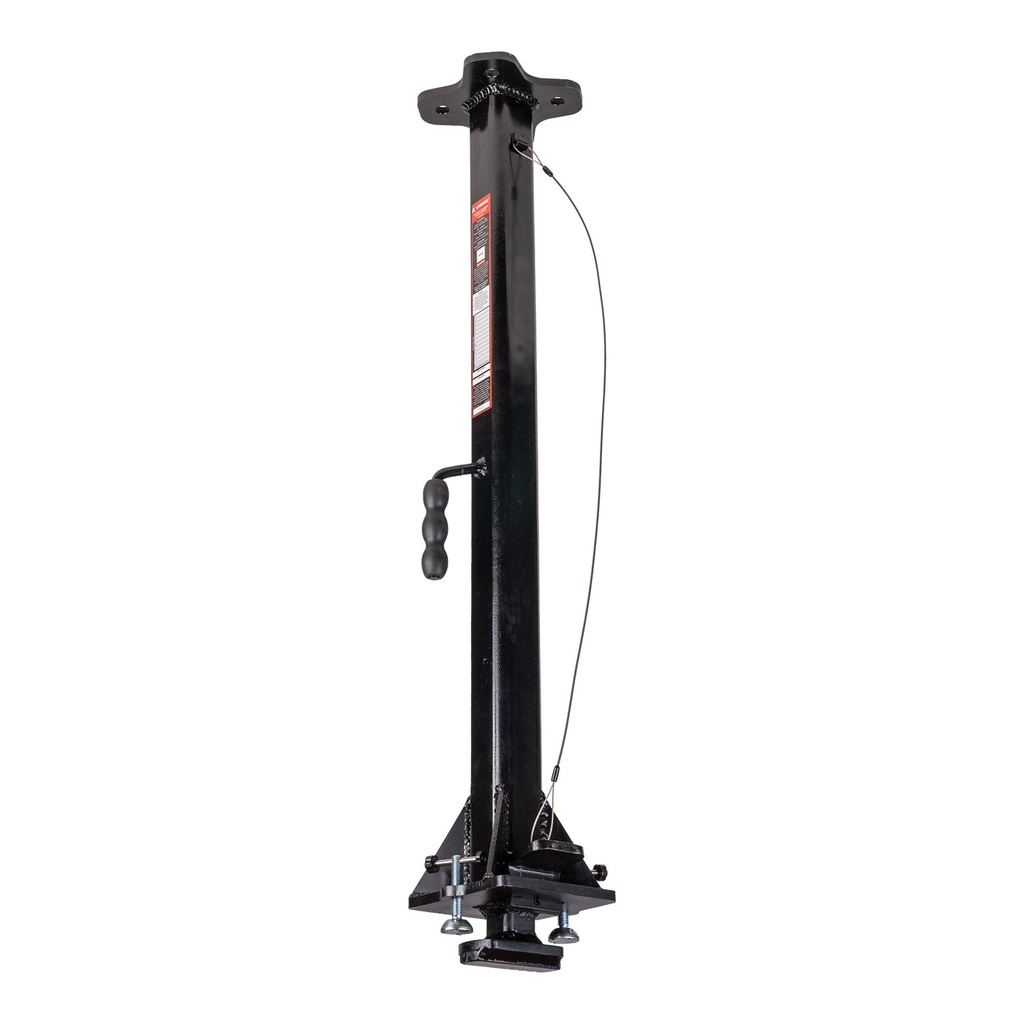

The KStrong® Container Anchor Post is engineered to provide a temporary and secure anchorage point for working on top of 20 ft. to 40 ft. shipping containers. This versatile anchor post can be used either as a stand-alone anchor or to form a horizontal lifeline across the container, depending on the specific work requirements. It features a side lock and tagline arrangement for easy and secure installation, which can be performed by a single person. The anchor post allows a 360° rotation with an anchorage eye diameter of 0.78” (20mm), making it suitable for most connectors. It includes a side handle with a special grip for easy carrying and safe transportation. Additionally, the anchor post can be easily removed without causing any damage to the container, ensuring both safety and convenience.
Feature | Specification |
---|---|
Product Name | KStrong® Container Anchor Post |
Design | Provides temporary anchor for 20 ft. – 40 ft. shipping containers. Can be used as a stand-alone anchor or to form a horizontal lifeline. Side lock and tagline for easy, secure installation by one person. Allows 360° rotation with an anchorage eye diameter of 0.78” (20mm), suitable for most connectors. Side handle with special grip for easy carrying and transportation. Easily removable without damaging the container |
Material | Alloy Steel |
Finish | Powder Coated Black |
System Strength | 5000 lbs. (2268kg) |
Vital Test Compliance | Static Strength: 5000 lbs. (2268 kg) for 3 Minutes |
Weight | 36.99 lbs ± 0.22 lbs. (16.78kg ± 100gm) |
Relevant Standards | Meets or Exceeds ANSI Z359.18-2017 Type D |
