12" Riser Post Roof Anchor with Swivel D-Ring (ANSI)
12" Riser Post Roof Anchor with Swivel D-Ring (ANSI)

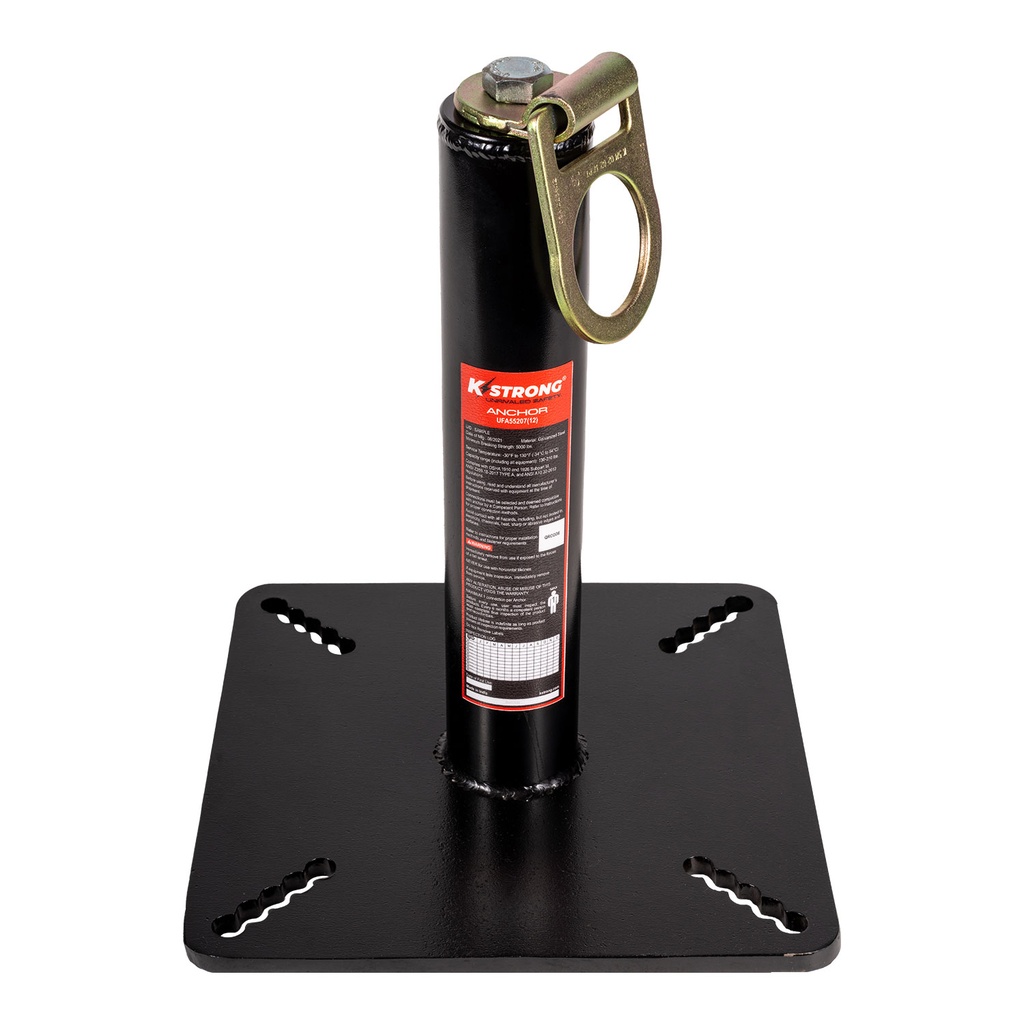

KStrong® Riser Post Roof Anchor (ANSI)
Product Code: UFA55207SW(12)
The KStrong® Anchor is designed to be securely fixed on metal I-beams for the installation of horizontal lifelines. Its base features an adjustable opening to accommodate various types of beam sections, ensuring versatility in different work environments. Installation is quick and easy with the included M12 nut and bolt system. The post comes with a pre-installed D-ring, facilitating immediate connections. Constructed from durable alloy steel and finished with a black ED coating, this anchor provides robust performance and long-lasting reliability. It meets or exceeds ANSI/ASSE Z359.18-2017 Type A standards.
Feature | Specification |
|---|---|
| Design | Fixed on metal I-beams for horizontal lifeline installation; adjustable base opening; easy installation with nut & bolt (M12); pre-installed D-ring for connections |
| Length (L) | 12 in. (304.8 mm) |
| Compatible with Minimum Flange Width | 5.91 in. (150 mm) |
| Compatible with Maximum Flange Width | 8.66 in. (220 mm) |
| Material | Alloy Steel |
| Finish | ED Coated Black |
| System Strength | 23 kN |
| Weight | 18.10 lbs. ± 0.44 lbs. (8.21 kgs ± 0.20 kgs) |
| Relevant Standards | Meets or Exceeds ANSI/ASSE Z359.18-2017 Type A |
