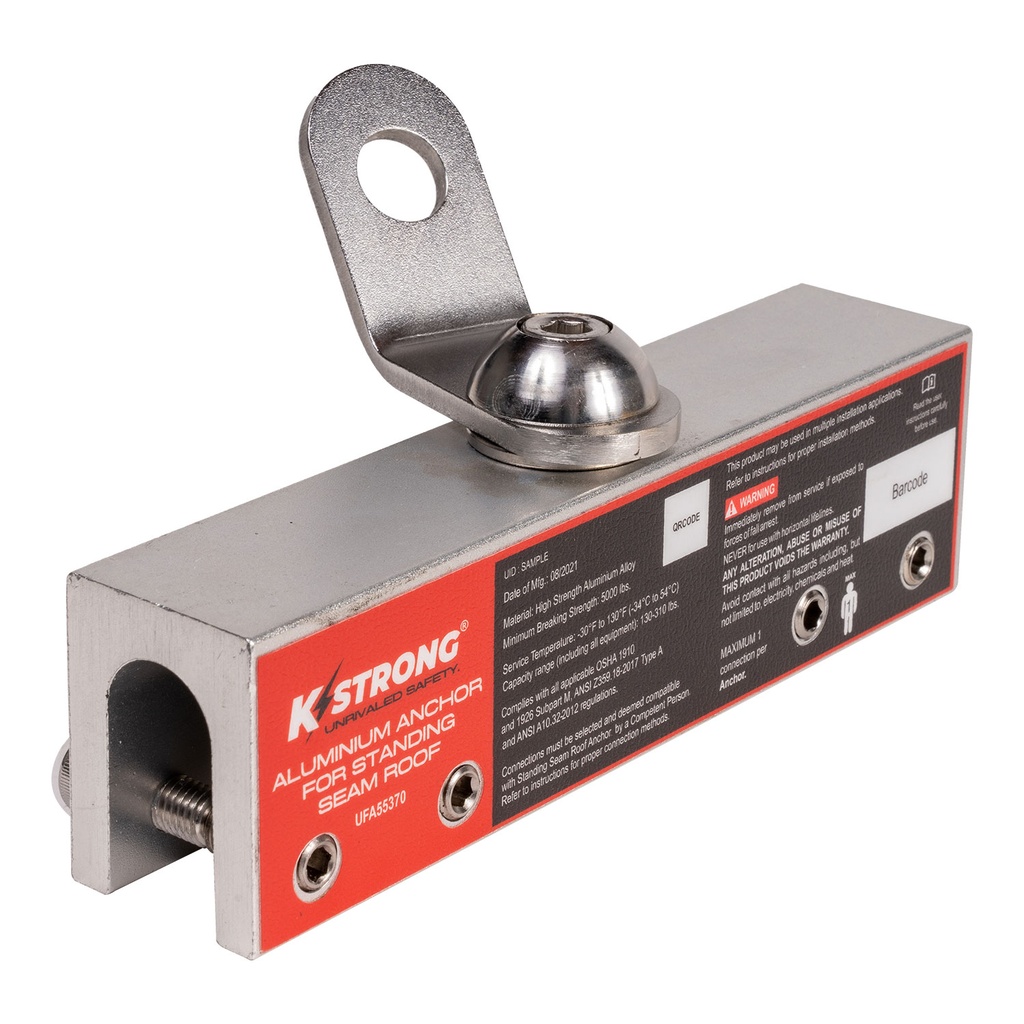

KStrong® Single Seam Roof Anchor (ANSI)
Product Code: UFA55370
The KStrong® Roof Top Anchor Device is designed for secure installation on metal standing seams and I-beams to facilitate the installation of horizontal lifelines. It features a trolley lateral hinge (swivel anchorage eye) on the top, providing a universal connection point that serves as an anchorage point. The anchor is fixed onto the rooftop using a screw set and is compatible with bulb sizes up to 0.91 inches (23 mm) on standing seam roofs. Constructed from aluminum alloy and stainless steel with a natural silver anodized finish, this anchor device offers durability and reliability. It meets or exceeds ANSI/ASSP Z359.18-2017 standards.
Feature | Specification |
|---|---|
| Design | Fixed on metal standing seams and I-beams; Trolley lateral hinge (Swivel anchorage eye) on top for universal connection; fixed using a screw set; compatible with bulb sizes up to 0.91 in. (23 mm) |
| Material | Aluminum Alloy & Stainless Steel |
| Finish | Natural Silver, Anodized |
| Minimum Breaking Strength | 23kN |
| Weight | 1.84 lbs. ± 0.02 lbs. (834 gm ±10 gm) |
| Relevant Standard | Meets or Exceeds ANSI/ASSP Z359.18-2017 |
