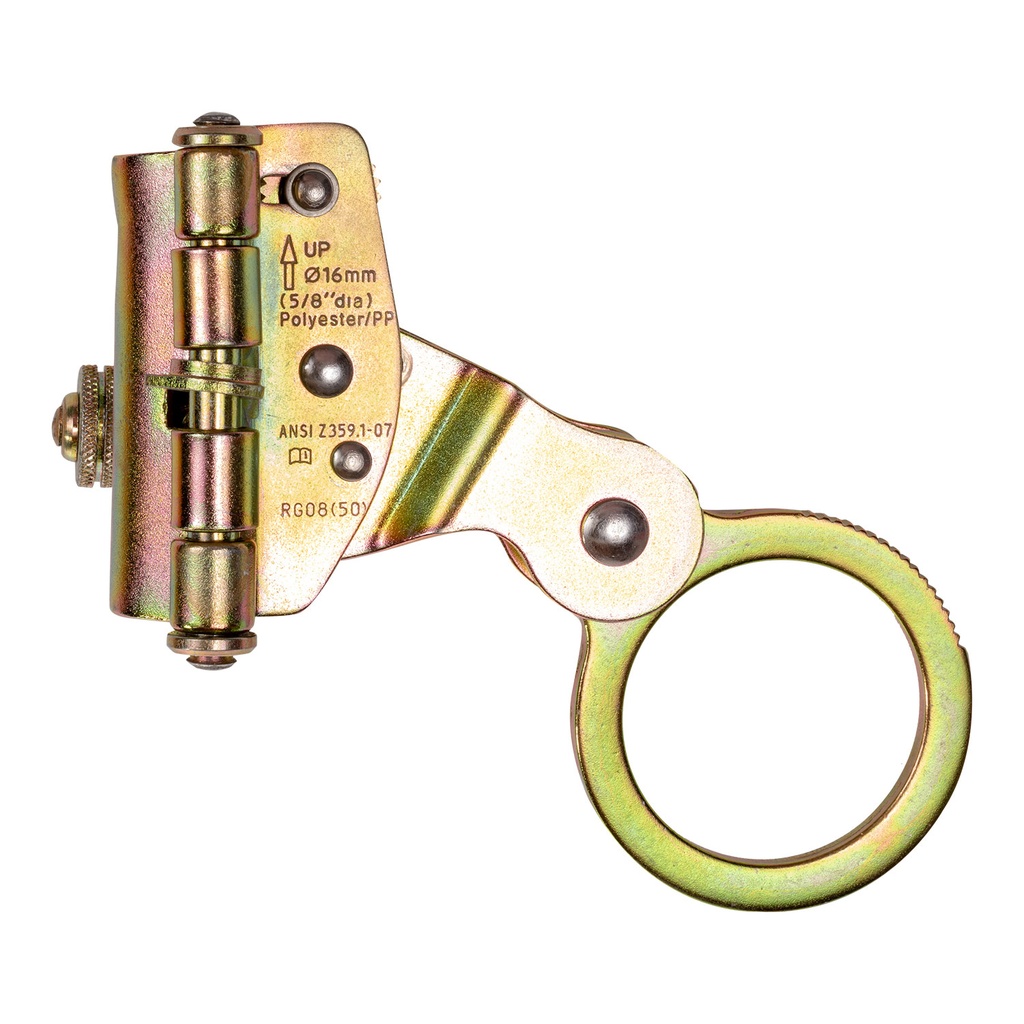

KStrong® 5/8″ Self-Tracking Steel Rope Grab with Anti-Panic Feature (ANSI)
Product Code: UFG601010
The KStrong® Self-Tracking Steel Rope Grab with Anti-Panic Feature is designed to provide enhanced safety and convenience for users working with vertical lifelines. Its non-captive design allows for easy placement and removal from 5/8″ approved vertical rope lifelines as needed. The rope grab moves smoothly along with the user while climbing up or down and locks automatically in the event of a fall. It is compatible with 0.47 in. (12 mm) diameter Kernmantle rope and 0.55 in. (14 mm) and 0.63 in. (16 mm) diameter twisted ropes. The galvanized sheet openable rope grab features a unique anti-panic mechanism and a connecting eye with a 1.97 in. diameter.
Feature | Specification |
|---|---|
| Design | Moving Rope Grab on flexible anchorage line. Moves along with the user climbing up or down and locks in case of a fall. Capable of using on 0.47 in. (12 mm) diameter Kernmantle Rope and 0.55 in. (14 mm) & 0.63 in. (16 mm) diameter twisted rope. Galvanized sheet openable rope grab with a unique anti-panic feature and a connecting eye of 1.97 in. diameter. |
| Minimum Breaking Strength | 15 kN |
| Material | High strength alloy steel |
| Weight | 1.13 lbs. ± 0.02 lbs. (513 gm. ± 10 gm) |
| Relevant Standards | Meets or Exceeds ANSI Z359.15-2014 |
