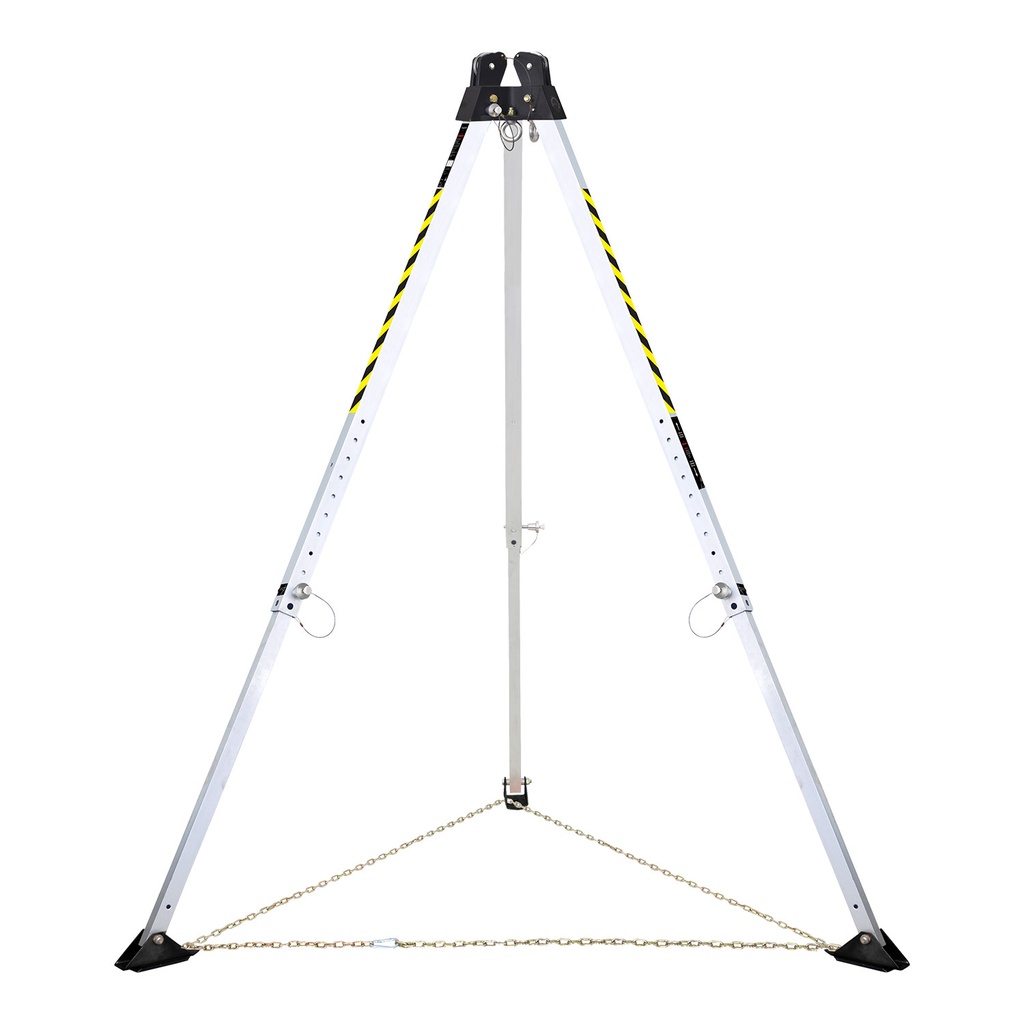

10' Adjustable Tripod with Dual Built-in Pulley Assembly and Storage Bag
10' Adjustable Tripod with Dual Built-in Pulley Assembly and Storage Bag
KStrong® Megapod™
Product Code: UFT510010
The KStrong® Megapod is an adjustable-height anchorage system designed for versatility and safety in elevated work environments. The height can be adjusted from 99 inches (8.25 ft. or 2.51m) to 114 inches (9.5 ft. or 2.90m) from ground level, making it suitable for various applications. The system features telescopic legs with locking pins attached by stainless steel cables, ensuring secure and easy adjustments. It is equipped with two eye bolts for connecting personal protective equipment and a dual pulley system to accommodate a winch and a retrieval block. The Megapod is made from prime quality aluminum alloy with an anodized finish, providing durability and corrosion resistance.
Feature | Specification |
|---|---|
| Design | Adjustable height from 99 in. to 114 in.; telescopic legs; locking pins with SS cables; two eye bolts for PPE connection; dual pulley system for winch and retrieval block |
| Height Range | 99 in. (8.25 ft. or 2.51m) to 114 in. (9.5 ft. or 2.90m) |
| Distance Between Legs (Min) | Ø7.03’ (2.14m) |
| Distance Between Legs (Max) | Ø7.6’ (2.32m) |
| Load Capacity | 310 lbs. (140 kg) (As per ANSI Z359.1-2007) |
| Megapod Legs & Head Material | Prime quality aluminum alloy |
| Finish | Anodized |
| Locking Pins Material | Stainless steel |
| Locking Pins Finish | Polished |
| Weight | 52.54 lbs. ± 0.22 lbs. (23.832 kg ± 0.100 kg) |
| Weight in Case | 76.1 lbs. ± 0.22 lbs. (34.518 kg ± 0.100 kg) |
| Relevant Standards | Meets or Exceeds ANSI Z359.1-2007 & EN 795:2012 Type B |
