KStrong® 60 ft. Galvanized wire cable Personnel/Material rated bi-directional winch for confined spaces (ANSI)
Product Code: UFT530060

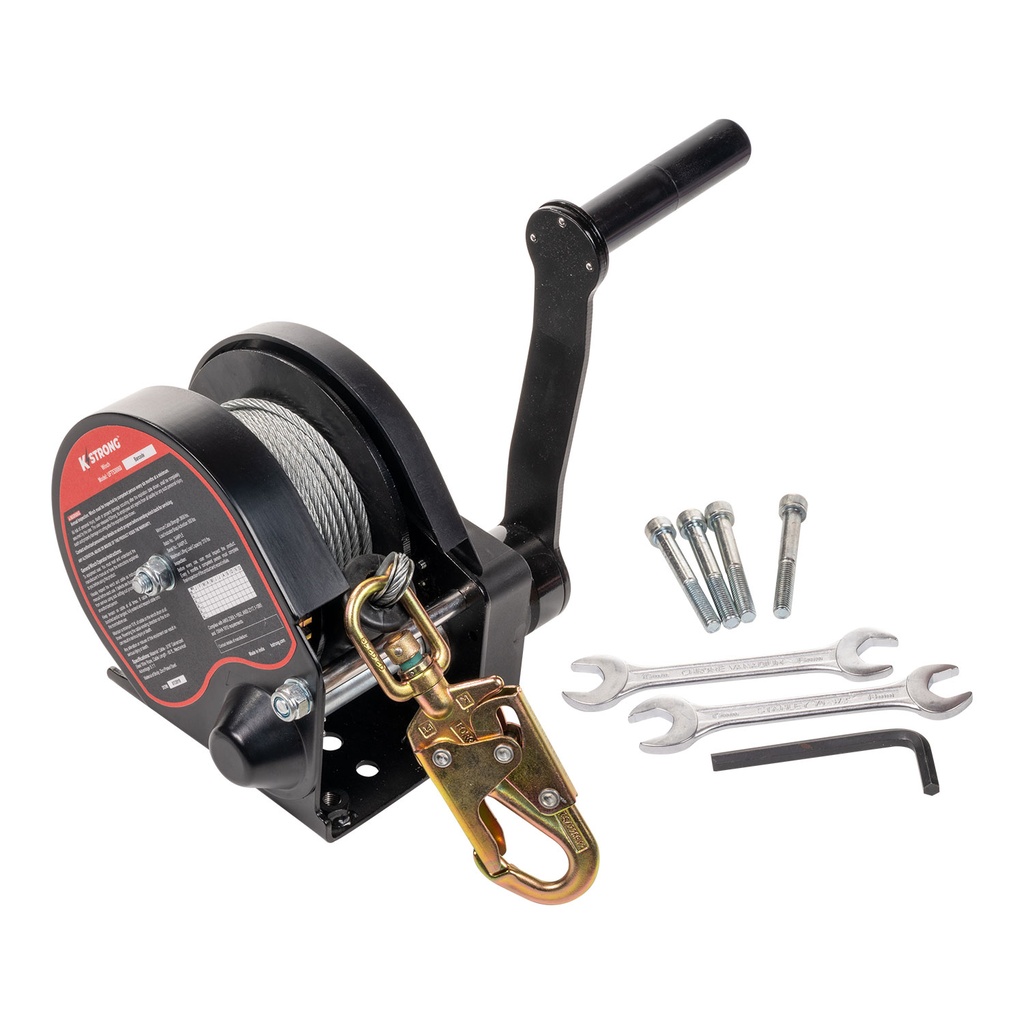

The KStrong® 60 ft. Galvanized Wire Cable Personnel/Material Rated Bi-Directional Winch is designed for confined space applications, offering reliable lifting and lowering capabilities for both personnel and materials. The winch features a robust galvanized steel construction and includes a mounting plate with hardware for secure attachment to the KStrong® Megapod Tripod or various Davit Arm models. It comes equipped with a 60-foot long, 3/16-inch diameter galvanized steel wire rope and a swivel steel snap hook for secure connections. The handle rotating mechanism ensures smooth and controlled lifting or lowering operations.
Feature | Specification |
|---|---|
| Design | Material or man lifting rescue winch; Mounting plate with four bolts for mounting to Davit Arm DA 01, DA 02, DA 03, DA 04, SA 17 & PN 800/PN 800A with specialized brackets; Handle rotating mechanism for lifting or lowering |
| Cable | Galvanized steel wire rope, 3/16” (76/406 mm) diameter, 60 ft. (1524 mm) length |
| Connector | Swivel Steel Snap Hook (PN 144 as per ANSI Z359.12-2009 gate strength 3600 lbs. (1633 kg)) |
| Body Material | Galvanized steel |
| Rated Load Capacity | 300 lbs. (136 kg) |
| Weight | 20.40 lbs. ± 0.02 lbs. (9253 gm ± 10 gm) |
| Relevant Standards | Meets or Exceeds ANSI Z359.14-2014 |
