    KStrong® Megadavit™ H-Base Basic Kit


    Product Code: UFT551011BK

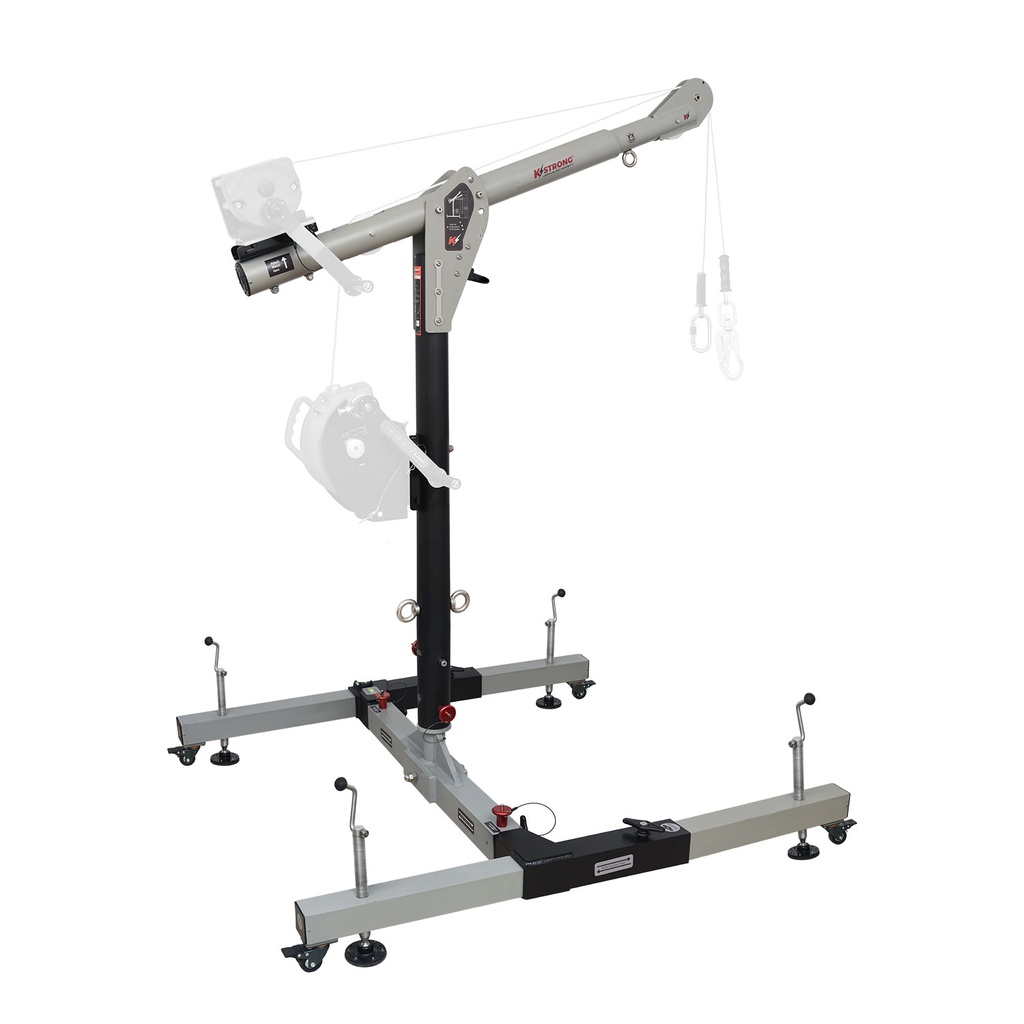

    The KStrong® Megadavit™ H-Base Basic Kit includes the H-Base Frame Assembly, a 54 in. Column Mast, and a 3 ft. Cantilever Boom Arm with Winch Bracket. Designed for easy storage, transport, and setup, the kit breaks down into five components and requires no tools for assembly. The modular design supports various fixed and portable bases, with the cantilever arm offering three adjustable height positions. It is ideal for providing overhead anchorages in large confined spaces, featuring foldable legs for easy transport and multiple anchorage points for rescue applications. The davit column assembly can rotate up to 360° for flexibility during use.


    FeatureSpecification
    DesignModular design for easy storage, transport, and setup. No tools required for assembly. Supports various fixed and portable bases. Cantilever arm with 3 adjustable positions. Ideal for overhead anchorages in large confined spaces. Foldable legs for easy transport. Multiple anchorage points for rescue applications. 360° rotation of the davit column assembly.
    MaterialHigh Strength and Durable Aluminum Alloy
    Opening of H-BaseMinimum Opening: Ø43.3 in. (1100mm) <br> Maximum Opening: Ø59.44 in. (1500mm)
    Maximum Load Capacity1102 lbs. (500kgs)
    FinishED coated grey
    System Strength15 kN (3300 lbs)
    Weight138.28 lbs ± 0.22 lbs (62.72kgs ± 0.10kgs)
    Upper Middle Lower
    Distance from Column 26.57 in. (0.675m) 33.27 (0.845m) 36.22 in. (0.92m)
    Height of Arm 89.76 in. (2.28m) 78.74 in (2.0m) 65.35 in. (1.66m)
