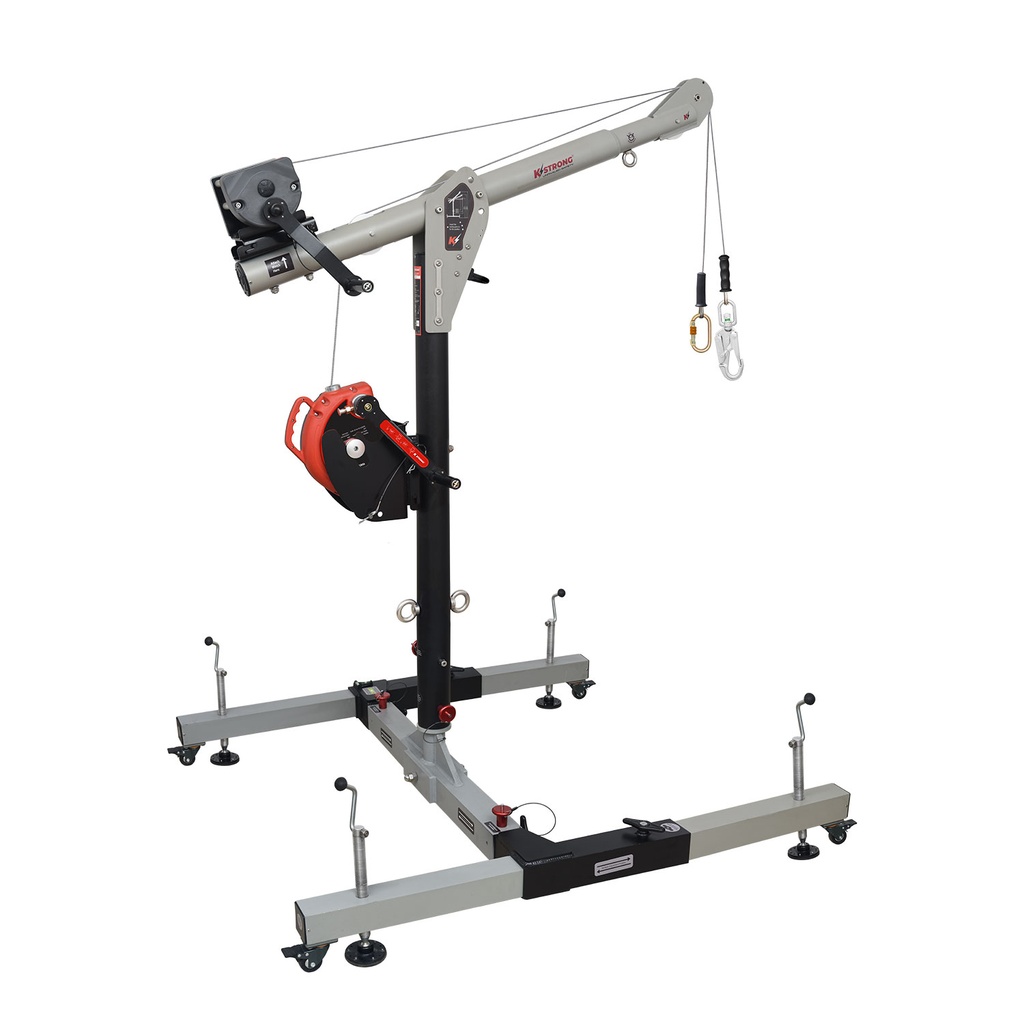

KStrong® Megadavit™ H-Base Deluxe Kit
Product Code: UFT551011DK
The KStrong® Megadavit™ H-Base Deluxe Kit is a comprehensive and modular solution designed for easy storage, transport, and setup. It includes an H-Base Frame Assembly, a 54 in. Column Mast, a 3 ft. Cantilever Boom Arm with Winch Bracket, a 60 ft. 3-way Rescue Retrieval SRL-R with Mounting Bracket, and a 60 ft. Material/Personnel Winch. The kit breaks down into five components, eliminating the need for tools during assembly. The modular design supports various fixed and portable bases, along with optional mast extensions. The Cantilever arm features three adjustable positions, making it ideal for providing overhead anchorages in large confined spaces. The Megadavit™ is equipped with removable and foldable legs for easy transportation and installation, multiple anchorage points for rescue applications, and an inbuilt swivel feature that allows the davit column assembly to rotate up to 360°.
Feature | Specification |
---|---|
Design | Modular design for easy storage, transport, and setup. No tools required for assembly. Supports various fixed and portable bases and mast extensions. Cantilever arm with 3 adjustable positions. Ideal for overhead anchorages in large confined spaces. Removable and foldable legs for easy transportation and installation. Multiple anchorage points for rescue applications. 360° rotation of the davit column assembly. |
Material | High Strength and Durable Aluminum Alloy |
Opening of H-Base | Minimum Opening Ø43.3 in. (1100mm) & Maximum Opening Ø59.44 in. (1500mm) |
Maximum Load Capacity | 1102 lbs. (500kgs) |
Finish | ED coated grey |
System Strength | 15 kN (3300 lbs) |
Weight | 196.70 lbs ± 0.22 lbs (89.22kgs ± 0.10kgs) |
Relevant Standards | Conforms to EN795:2012 Type B, AS/NZS 5532:2013 |
Upper | Middle | Lower | |
Distance from Column | 26.57 in. (0.675m) | 33.27 (0.845m) | 36.22 in. (0.92m) |
Height of Arm | 89.76 in. (2.28m) | 78.74 in (2.0m) | 65.35 in. (1.66m) |
