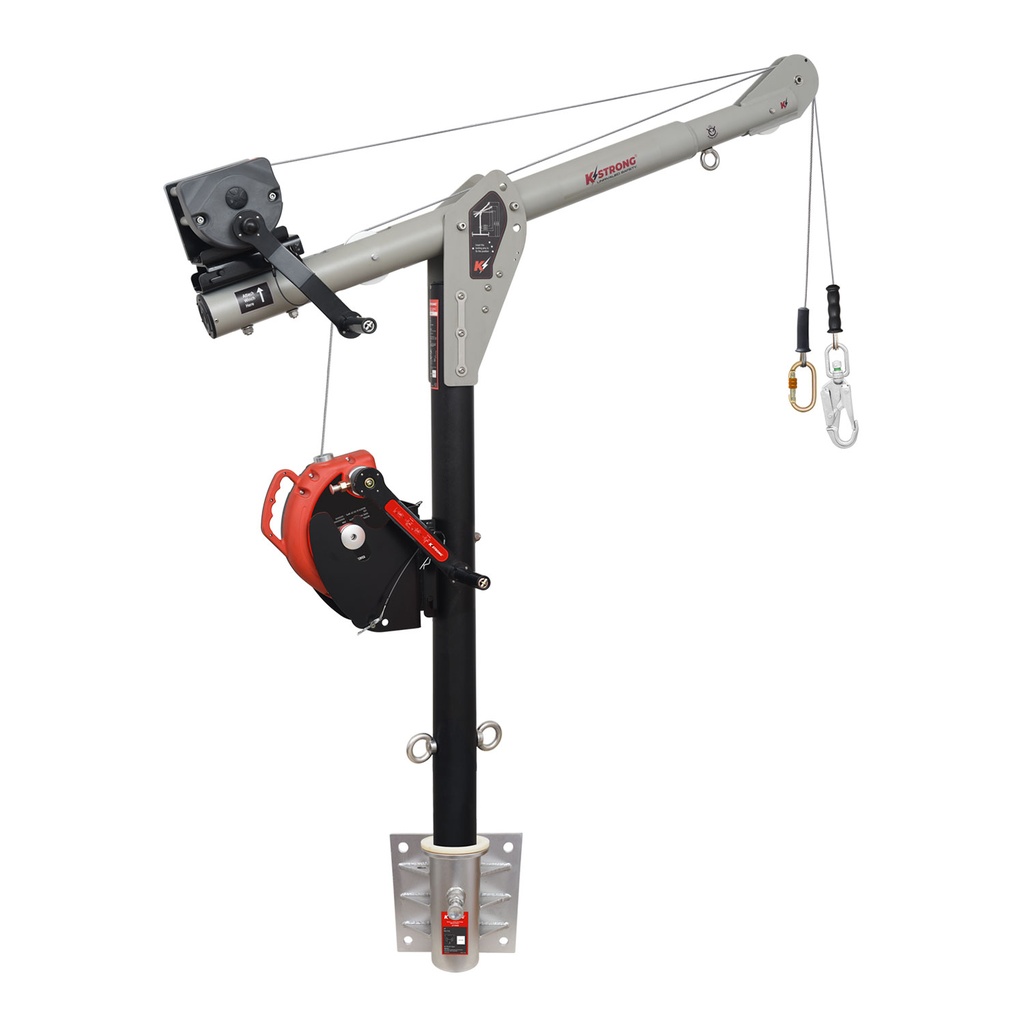

KStrong® Megadavit™ Wall Mount Deluxe Kit
Product Code: UFT551031DK
The KStrong® Megadavit™ Wall Mount Deluxe Kit is a comprehensive solution for rescue and retrieval operations in confined spaces. The kit includes a Wall Mount Column Mast Receiver, a 54 in. Column Mast, a 3 ft. Cantilever Boom Arm with Winch Bracket, a 60 ft. 3-way Rescue Retrieval SRL-R with Mounting Bracket, and a 60 ft. Material/Personnel Winch. It is designed to break down into two components for easy storage, transport, and setup without the need for tools. The modular design supports various fixed and portable bases and mast extensions, with a cantilever arm offering three adjustable height positions. The davit column assembly can swivel up to 360°, providing flexibility and ease of use. The wall mount base is designed for secure attachment to concrete or steel structures and must be installed following local regulations by a qualified engineer.
| Feature | Specification |
|---|---|
| Design | Modular design for easy storage, transport, and setup. No tools required for assembly. Supports various fixed and portable bases and mast extensions. Cantilever arm with 3 adjustable positions. Ideal for overhead anchorages in large confined spaces. Removable legs for easy transportation and installation. Multiple anchorage points for rescue applications. 360° rotation of the davit column assembly. Wall mount base designed for secure attachment to concrete or steel structures. |
| Material | High Strength and Durable Aluminum Alloy |
| Maximum Load Capacity | 1102 lbs. (500kgs) |
| Finish | ED coated grey |
| System Strength | 15 kN (3300 lbs) |
| Weight | 146.86 lbs ± 0.22 lbs (66.61kgs ± 0.10kgs) |
| Relevant Standards | Conforms to EN795:2012 Type B, AS/NZS 5532:2013 |
| Upper | Middle | Lower | |
| Distance from Column | 26.57 in. (0.675m) | 33.27 (0.845m) | 36.22 in. (0.92m) |
| Height of Arm | 74.8 in. (1.9m) | 63.78 in (1.62m) | 50.39 in. (1.28m) |
