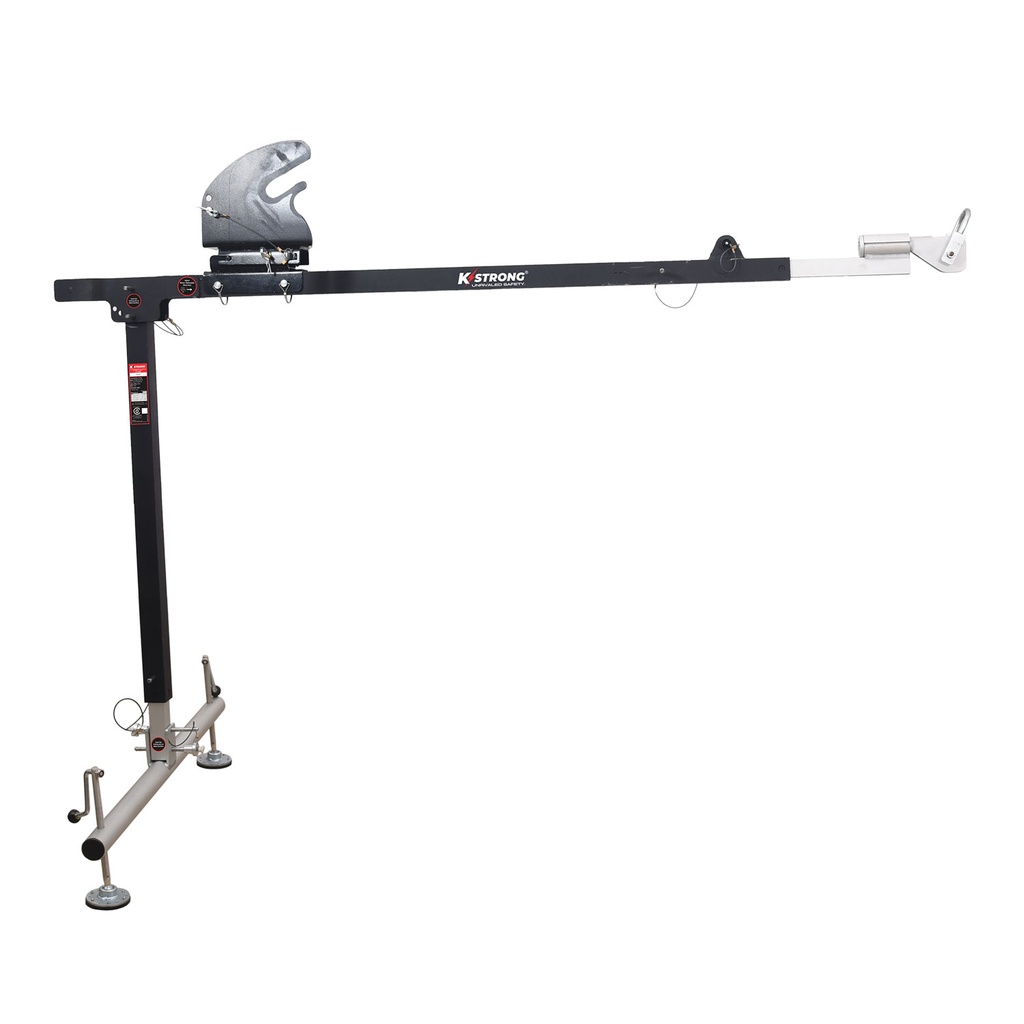

Side Entry Davit Assembly with Retrieval Device Bracket (High Strength Aluminum Alloy)
Side Entry Davit Assembly with Retrieval Device Bracket (High Strength Aluminum Alloy)
KStrong® Side Entry Davit Assembly with Retrieval Device Bracket (High Strength Aluminum Alloy)
Product Code: UFT551080
The KStrong® Megadavit™ Confined Space Access System is the ideal choice for accessing confined spaces using winches or retrieval units when a regular anchorage system cannot be used due to height constraints. This versatile system features three adjustment points, making it adaptable to various locations where the anchor is at a low level. The cantilever includes a swivel eye for attachment to a rated anchor point, and the base features swivel pads to ensure the system is level with the ground. Preinstalled mounting brackets are compatible with KStrong winches or retrieval blocks. This system can be used for side gantry holes and both vertical and horizontal confined space entries.
| Feature | Specification |
|---|---|
| Design | Ideal for confined space access with winches/retrieval units. Versatile with three adjustment points. Swivel eye at cantilever end for rated anchor point attachment. Base with swivel pads for leveling. Preinstalled mounting brackets compatible with KStrong winches/retrieval blocks. Suitable for side gantry holes and both vertical and horizontal confined space entries. |
| Physical Parameters | High Strength Aluminum Alloy |
| Maximum Load Capacity | 1102 lbs. (500 kgs) |
| Finish | Powder Coated in dual color – Black & Grey |
| Weight | 28.63 lbs. ± 0.22 lbs. (12.99 kgs ± 0.10 kgs) |
| System Strength | 15 kN |
