54 in. Column Mast (High Strength Aluminum Alloy)
54 in. Column Mast (High Strength Aluminum Alloy)
KStrong® Megadavit™ 54 in. Column Mast (High Strength Aluminum Alloy)
Product Code: UFT556201

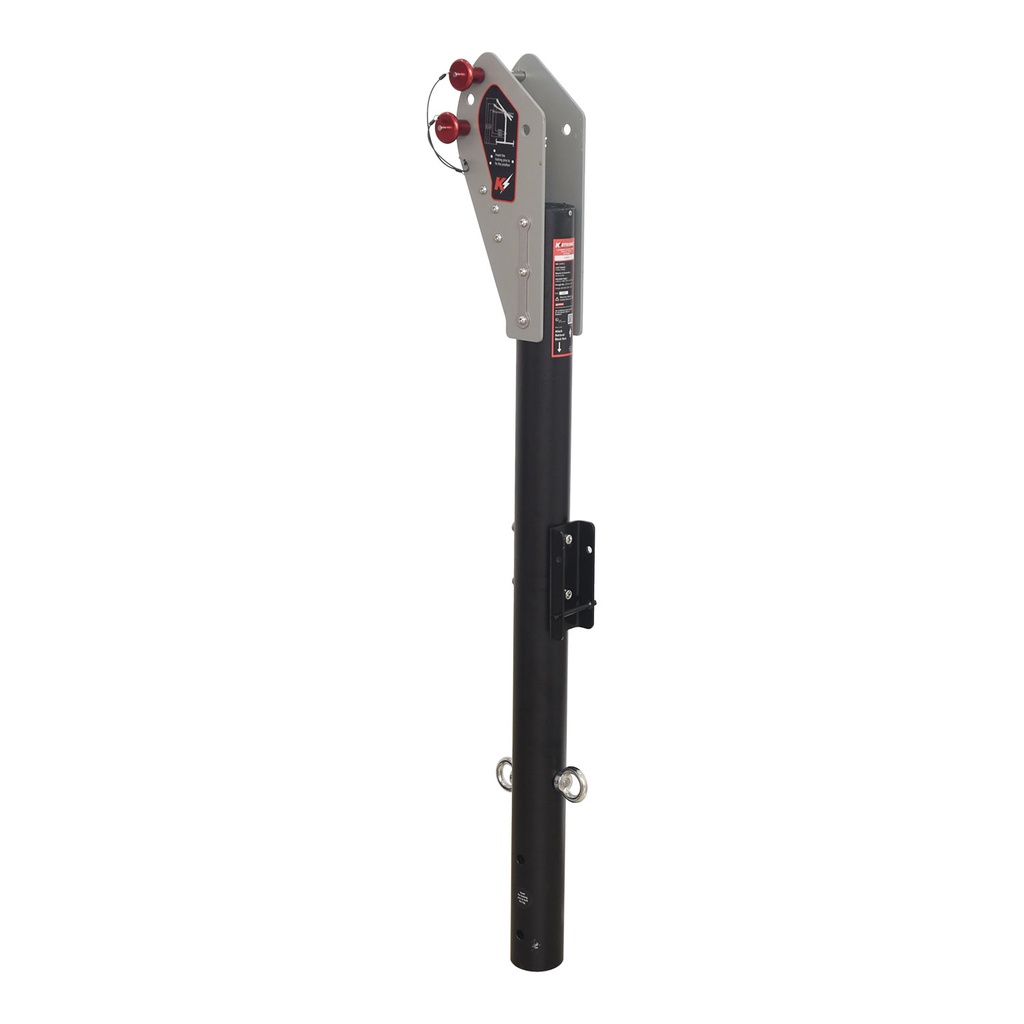

The Lower Mast Assembly is an integral component designed for use with the KStrong® Megadavit™ system, including configurations with H-base davits, wall/floor mounts, hitch mounts, and concrete flush mounts. It features a pre-installed mounting bracket compatible with retrieval blocks using a universal mounting bracket. The upper offset mast (BOOM) support plate allows for easy attachment and adjustment at three defined positions using locking pins. An additional eye nut is provided for use as an anchorage point during rescues. The assembly includes a cap to prevent the ingress of water and dust particles.
Feature | Specification |
|---|---|
| Design | Lower mast assembly for KStrong® Megadavit™ system with H-base davit, wall/floor mount, hitch mount, and concrete flush mount. Pre-installed mounting bracket for retrieval blocks. Upper offset mast support plate with locking pin adjustment. Additional eye nut for rescue anchorage. Cap for water and dust ingress prevention. |
| Material | Lower Mast: Aluminum alloy <br> Eye Nut: Stainless steel <br> Mounting Bracket: Alloy steel |
| Finish | Lower Mast: ED coated grey <br> Eye Nut: Polished <br> Mounting Bracket: ED coated black |
| Weight | 38.95 lbs ± 0.44 lbs (17.67 kgs ± 0.20 kgs) |
| Relevant Standards | Conforms to EN 795:2012 Type A |
