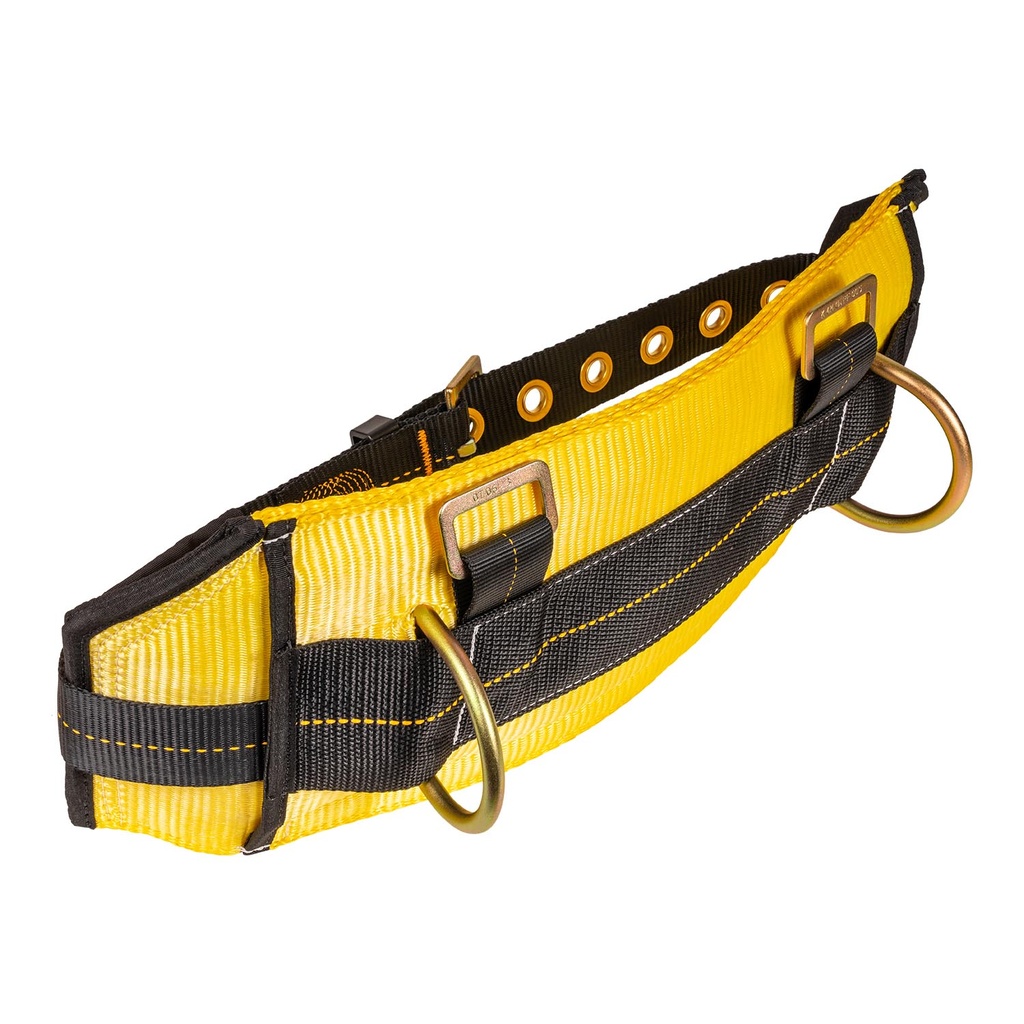

KStrong® Oil and Gas Derrick Belly Belt with Two Connector Buckles
Product Code: UFZ910005
The KStrong® Oil and Gas Derrick Belly Belt with Two Connector Buckles is designed for use with a harness, ensuring enhanced safety and functionality. This belly belt features a 7.87” (200mm) strap for wide coverage and is equipped with mating frames connecting straps for upper torso attachment. It offers 7 adjustment positions (grommets) and integrated fixed position frontal D-rings, making it ideal for throwing pipe in monkey board positioning applications.
Feature | Specification |
|---|---|
| Design | Belly belt designed for use with harness |
| Strap Width | 7.87” (200mm) |
| Connector Straps | Equipped with mating frames connecting straps for upper torso attachment |
| Adjustment Positions | 7 adjustment positions (grommets) |
| D-Rings | Integrated fixed position frontal D-rings for monkey board positioning |
| Webbing Material | Polyester |
| Webbing Width | 1.73 in. ± 0.04 in. (44mm ± 1mm) |
| Webbing Breaking Strength | 5000 lbs. |
| Stitching Thread Material | High-tenacity Polyester |
| Metal Component Material | Alloy Steel |
| Metal Component Breaking Strength | Buckles - 15 kN, D-Ring – 23 kN |
| Metal Finish | Golden Yellow Galvanized |
| Weight | 4.11 lbs. ± 0.02 lbs. (1865 gm ± 10 gm) |
| Relevant Standards | Meets or Exceeds OSHA 1926.502 and 1910.66 |
